Description
USED - Built in the tradition of the legendary BOSS overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.
Specs:
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass

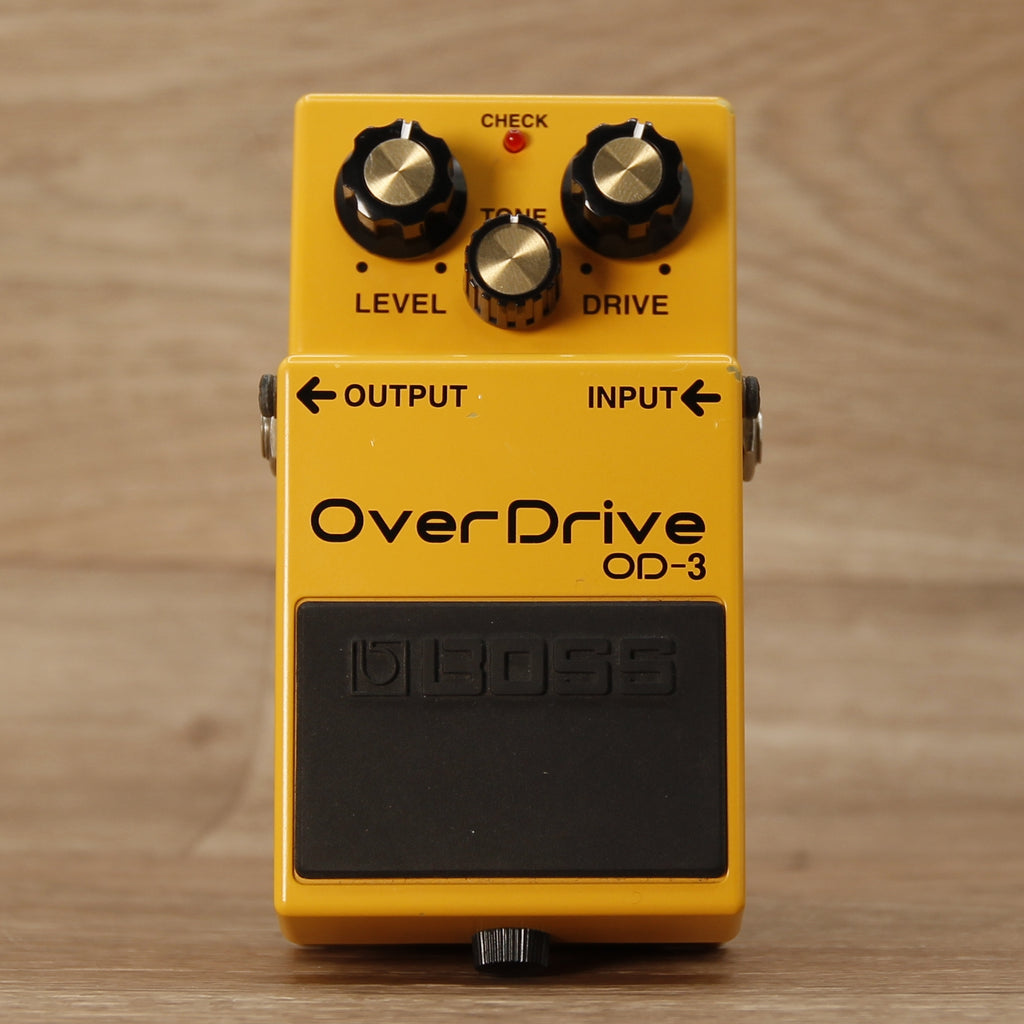

- Controls:
- DRIVE knob
- TONE knob
- LEVEL knob
- Pedal switch
- Indicator: CHECK indicator (Used for indication of check battery)
- Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type

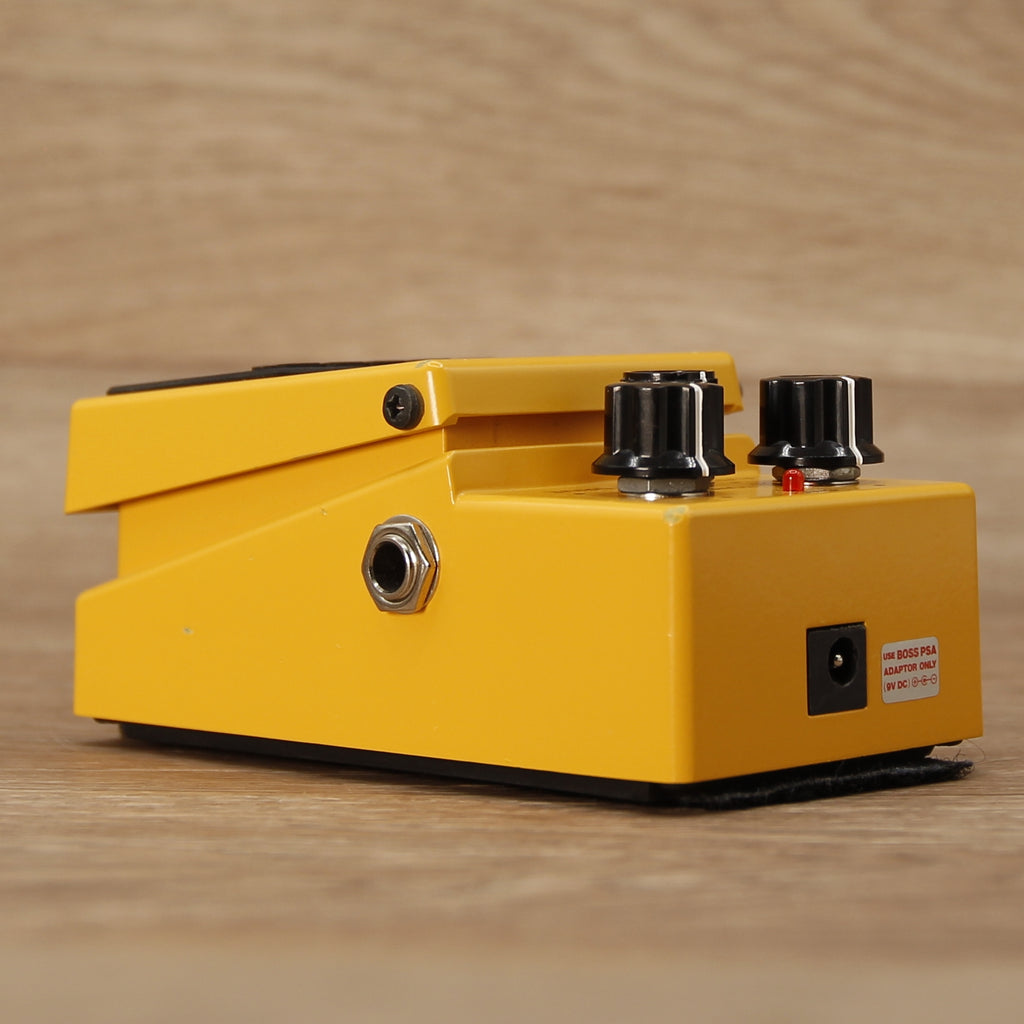

- DC IN jack
- Power Supply: Carbon-zinc battery (9 V, 6F22), Alkaline battery (9 V, 6LR61) or AC adaptor (PSA series: sold separately)
- Current Draw: 15 mA
- Expected battery life under continuous use*:
- Carbon: Approx. 34.5 hours
- Alkaline: Approx. 56 hours
*These figures will vary depending on the actual conditions of use. - Width: 2-7/8 inches
- Depth: 5-1/8 inches
- Height: 2-3/8 inches
- Weight (including battery): 14 oz
---------------------------------------------------------------
