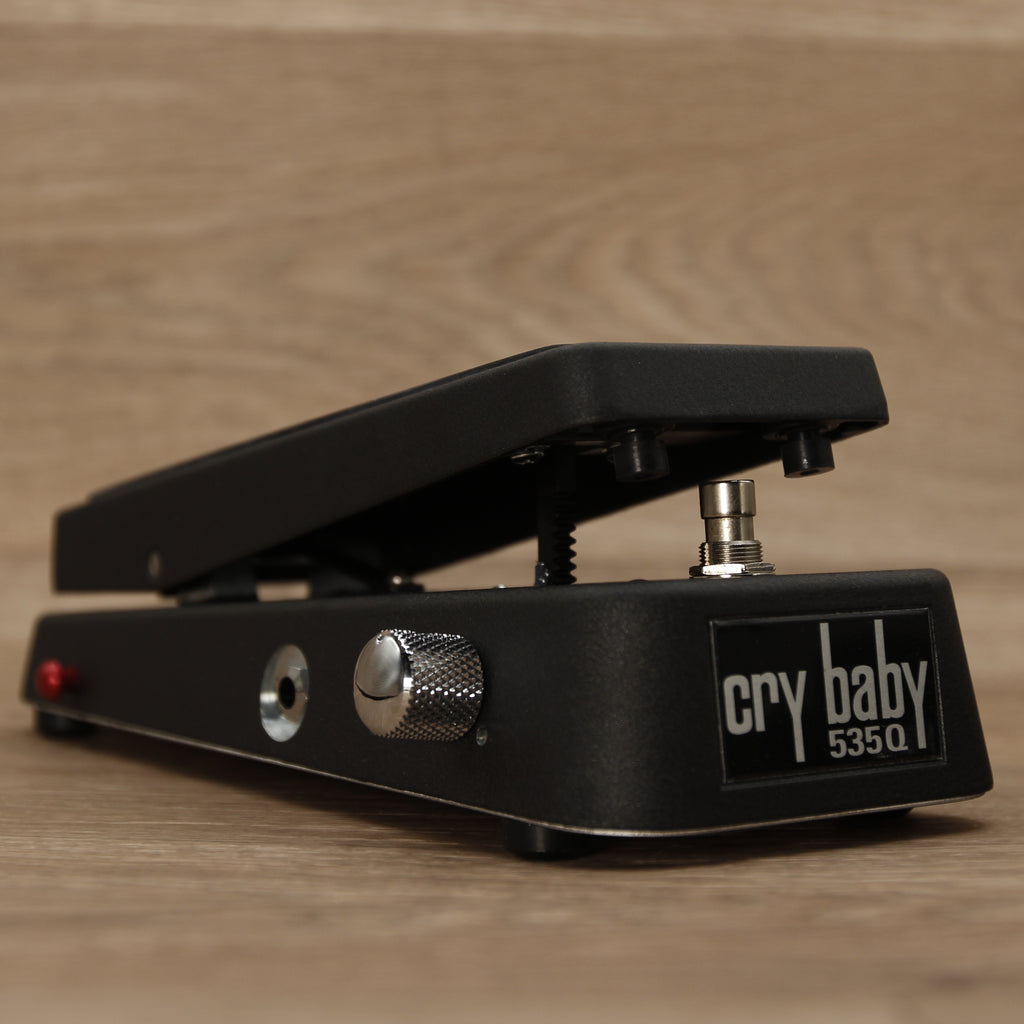

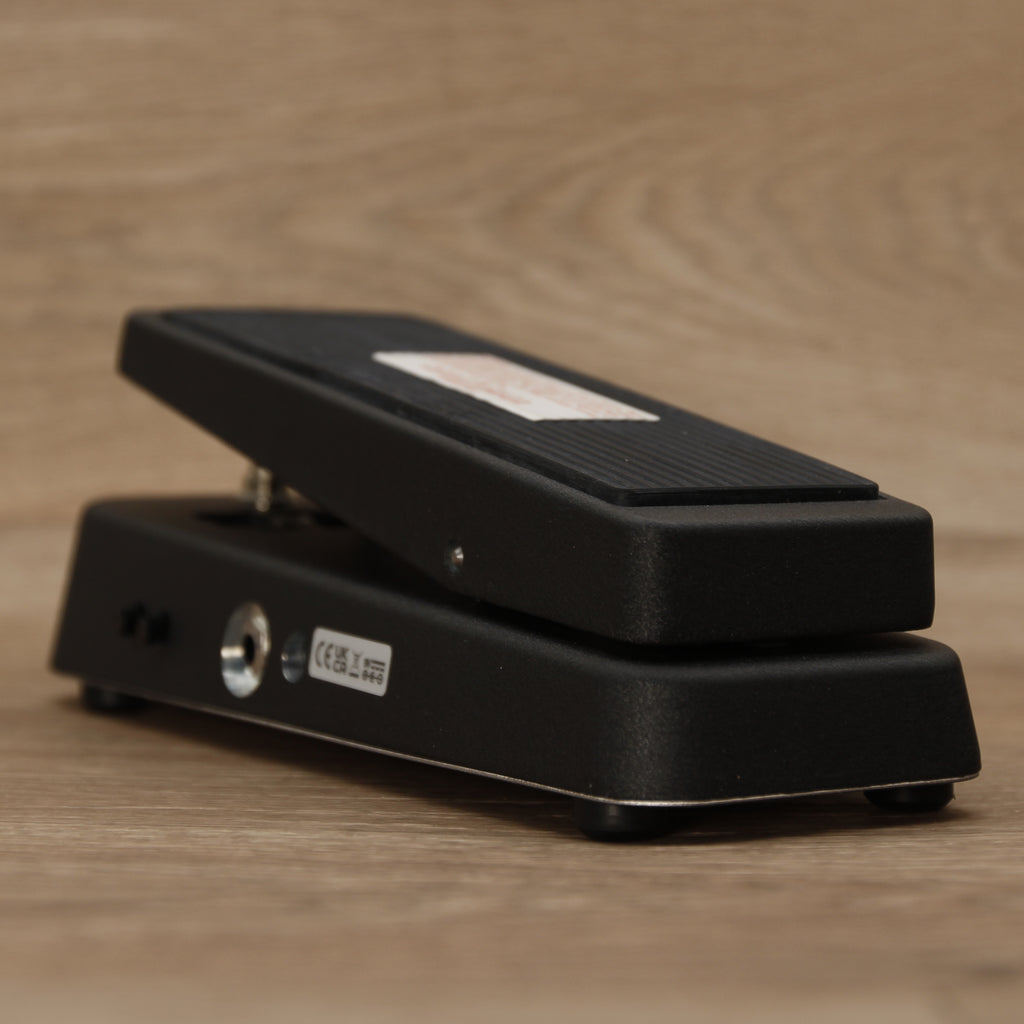

Dunlop 535Q Cry Baby Multi-Wah *B-Stock*

Brand new pedal from Dunlop, marked as B-Stock!

Pedals are factory seconds that have been refurbished by Dunlop. Issues included but are not limited to: signs of box being opened or handled, price stickers, adhesive, slight cosmetic defects on the pedal itself, missing accessories such as rubber feet or decals.

Free shipping to the Continental U.S.

Collar City Guitars is an Authorized MXR/Dunlop Dealer and a Preferred Reverb Seller, buy with confidence!
---------------------------------------------------------------------
The 535Q Cry Baby Multi-Wah features a six-position Range Selector, a Variable Q control, and a switchable boost circuit so you can dial in the ultimate wah tone.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

Specs:

• Impedance:

  • Input: 1 MΩ

  • Output: 1 kΩ

• Signal to Noise Ratio:*

  • Heel Down: 90 dBV

  • Toe Down: 97 dBV

• Wah Range Selector:

  • 1st Position (Full CCW): 440 Hz to 2.2 kHz

  • 2nd Position: 400 Hz to 1.9 kHz

  • 3rd Position: 375 Hz to 1.8 kHz

  • 4th Position: 345 Hz to 1.6 kHz

  • 5th Position: 395 Hz to 1.4 kHz

  • 6th Position: 250 Hz to 1.2 kHz

• Filter Gain**: 15 dB

• Boost Control Range: 0.1 dB to 17 dB

• Bypass: True Hardwire

• Current Draw: 2.5 mA

• Power Supply: DC 9 volts
  *A-weighted, **Q control at maximum clockwise, boost off
