EarthQuaker Devices Sunn O))) Life Pedal v1 - USED

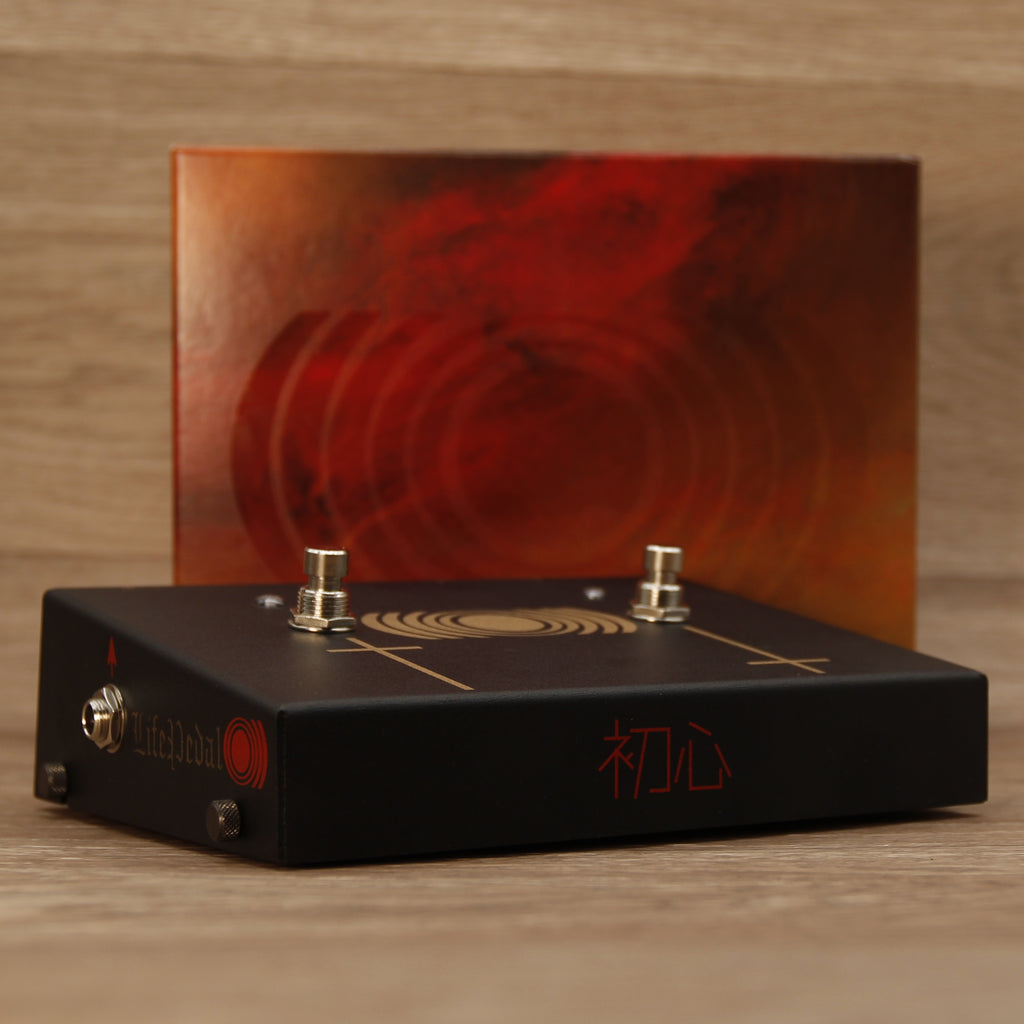

Used pedal in very good condition! Includes original packaging.

Collar City Guitars is an Authorized EQD Dealer and a Preferred Reverb Seller, buy with confidence!
-------------------------------------------------------------------
The Life Pedal is an octave distortion and booster built in a custom folded aluminum enclosure. It is faithfully modeled after the classic LM308 "White Face" distortion pedal, right down to the LM308 IC and tantalum caps. The only modifications made to the original circuit are in the clipping section. The traditional circuit uses a single pair of silicon diodes for a tight, compressed crunch. The Life Pedal introduces two additional clipping options to better adapt to different rigs. The first position is no diodes to allow for full, grinding Op Amp assault at maximum volume. The second position utilizes two silicon diodes and one LED in an asymmetrical clipping configuration. This delivers a slightly compressed and smooth crunch, similar to a valve amplifier. The last position is the stock double silicon diode configuration which provides that classic tone you know and love.

The Octave in Life Pedal is an all-discrete, analog full-wave rectifier circuit build around a pair of Russian Germanium diodes. Located at the input of the circuit, the Octave control slowly blends in the octave effects as you turn it clockwise. Because this is an analog octave effect, it is monophonic and works best playing single notes above the twelfth fret while using the neck pickup. Playing chords with the analog octave will sound clanging and chaotic. Using the bridge pickup and playing below the twelfth fret will produce a very subtle octave effect. Going full Octave transforms Life Pedal from a simple distortion device into a swelling, raging fuzz similar to the classic Super Fuzz!

The boost section of Life Pedal is a simple all-discrete MOSFET booster designed to blast your preamp tubes and drive them wild. It is a 100% clean, no-nonsense, high impedance booster that adds very little color to your tone. It does not add distortion on its own but has plenty of output to push your amp into saturation.

The signal path goes Octave>Distortion>Boost. The octave distortion and booster can be used independently with their own respective foot switches.

Specs:

• Octave Distortion:

  • Input impedance: 1M Ohm

  • Output impedance: <1K Ohm
• Booster:

  • Input impedance: 500K Ohm

  • Output impedance: <1K Ohm
• Current Draw: 15 mA
• Power: This device can be powered by a 9v battery or a standard 9-volt DC Power supply with a 2.1mm negative center barrel. DO NOT RUN AT HIGHER VOLTAGES!!
