Description

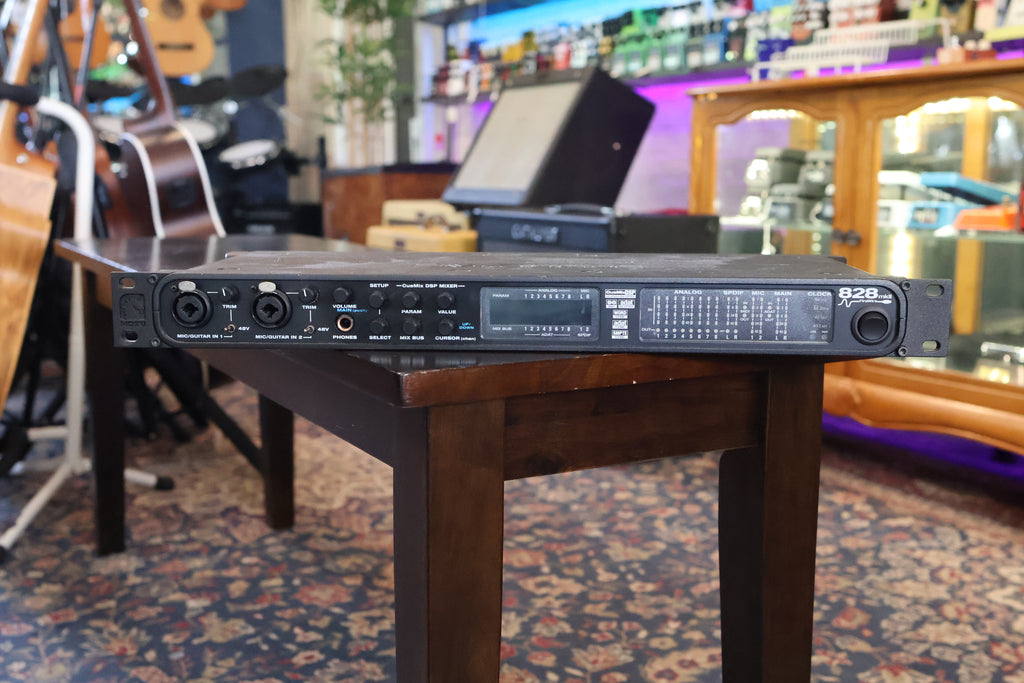

USED - The 828mkII is a computer-based hard disk recording system for Mac OS and Windows that offers 20 inputs and 22 outputs at any standard sample rate up to 96kHz. All inputs and outputs can be accessed simultaneously. The 828mkII consists of a standard 19-inch, single-space, rackmountable I/O unit that connects directly to a computer via a standard IEEE 1394 FireWire™ cable.
Untested - No cables or power supply included.
Features:

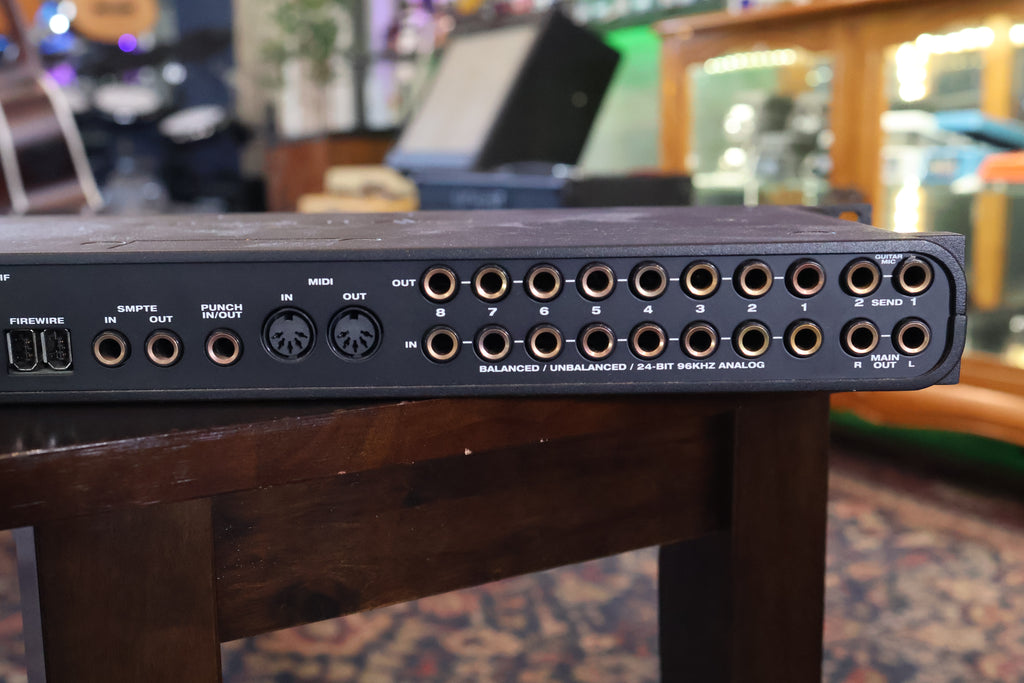

Eight 24-bit analog TRS inputs
Ten 24-bit analog TRS outputs

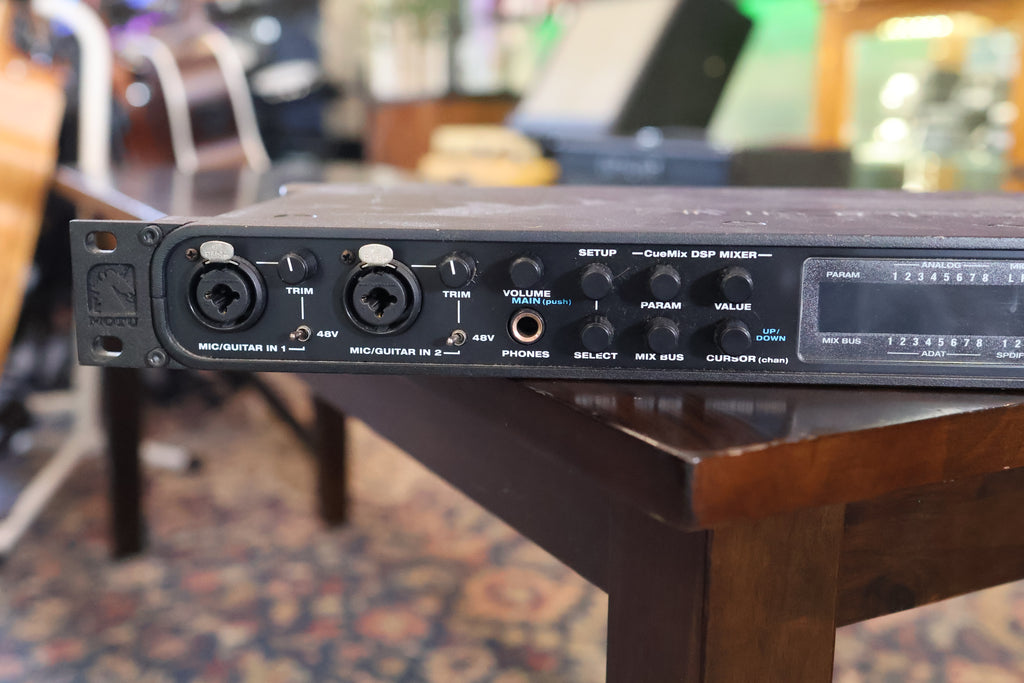

Two combo XLR/TRS mic/guitar inputs with preamps, rear-panel quarter-inch sends and 48V phantom power

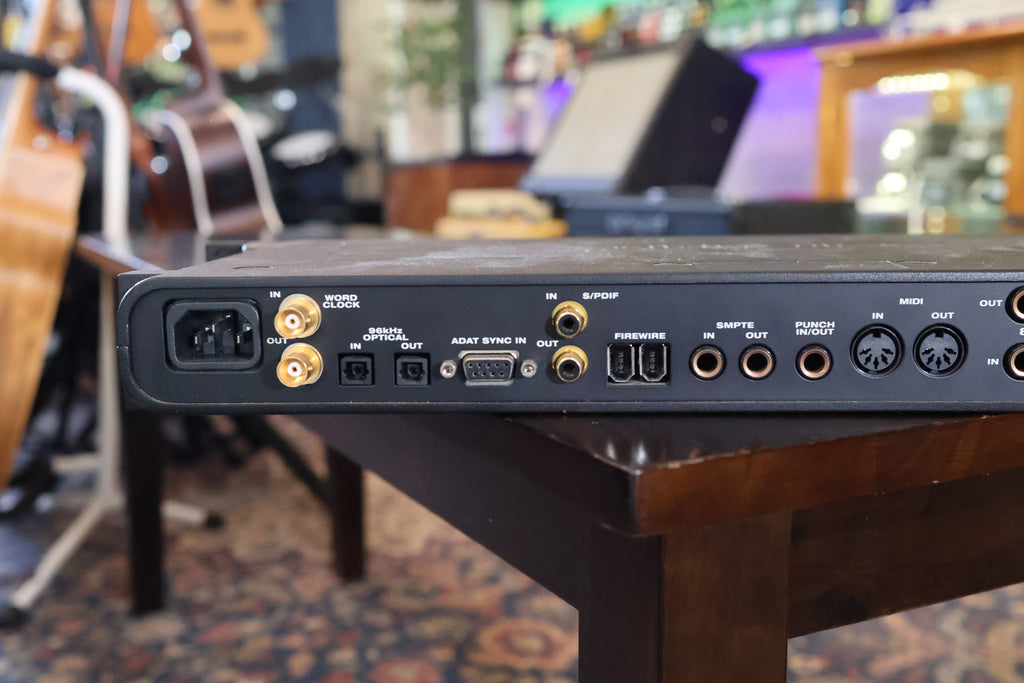

Eight-channel ADAT optical digital I/O
S/PDIF (optical and RCA)
ADAT sync in
Word clock I/O
MIDI I/O
On-board SMPTE synchronization with dedicated SMPTE I/O jacks
Foot switch for hands-free punch-in/out
Headphone jack
Main volume knob (for headphone + main outs)
CueMix DSP no-latency mixing & monitoring

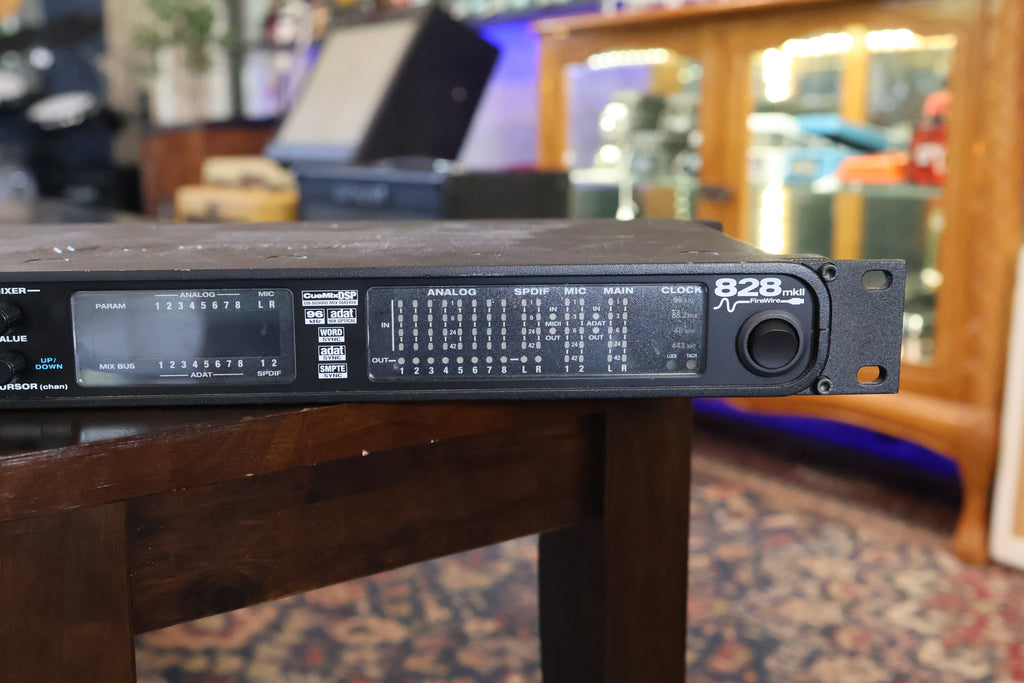

Front-panel programming
Stand-alone mixing
With a variety of I/O formats, mic preamps, nolatency monitoring of live input and synchronization capabilities, the 828mkII is a complete, portable “studio in a box” when used with a Mac or Windows computer.
