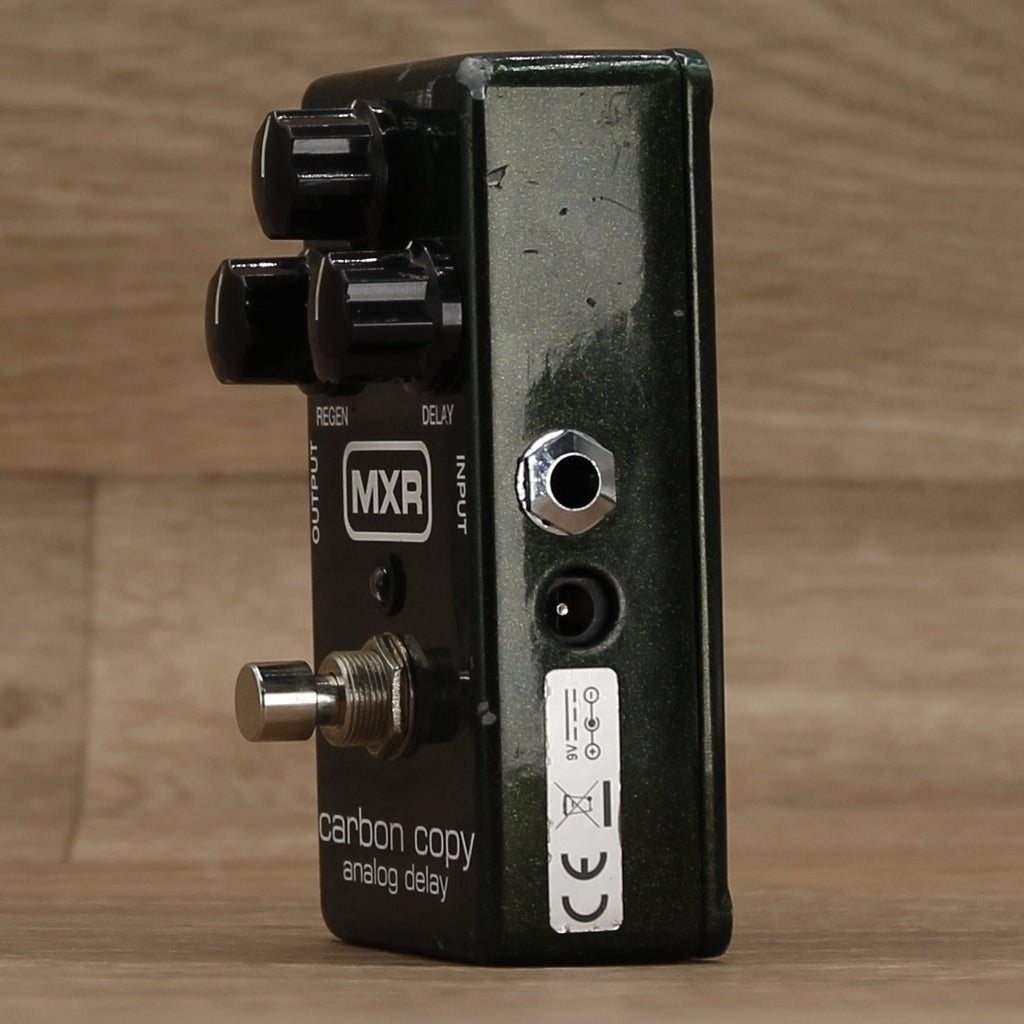

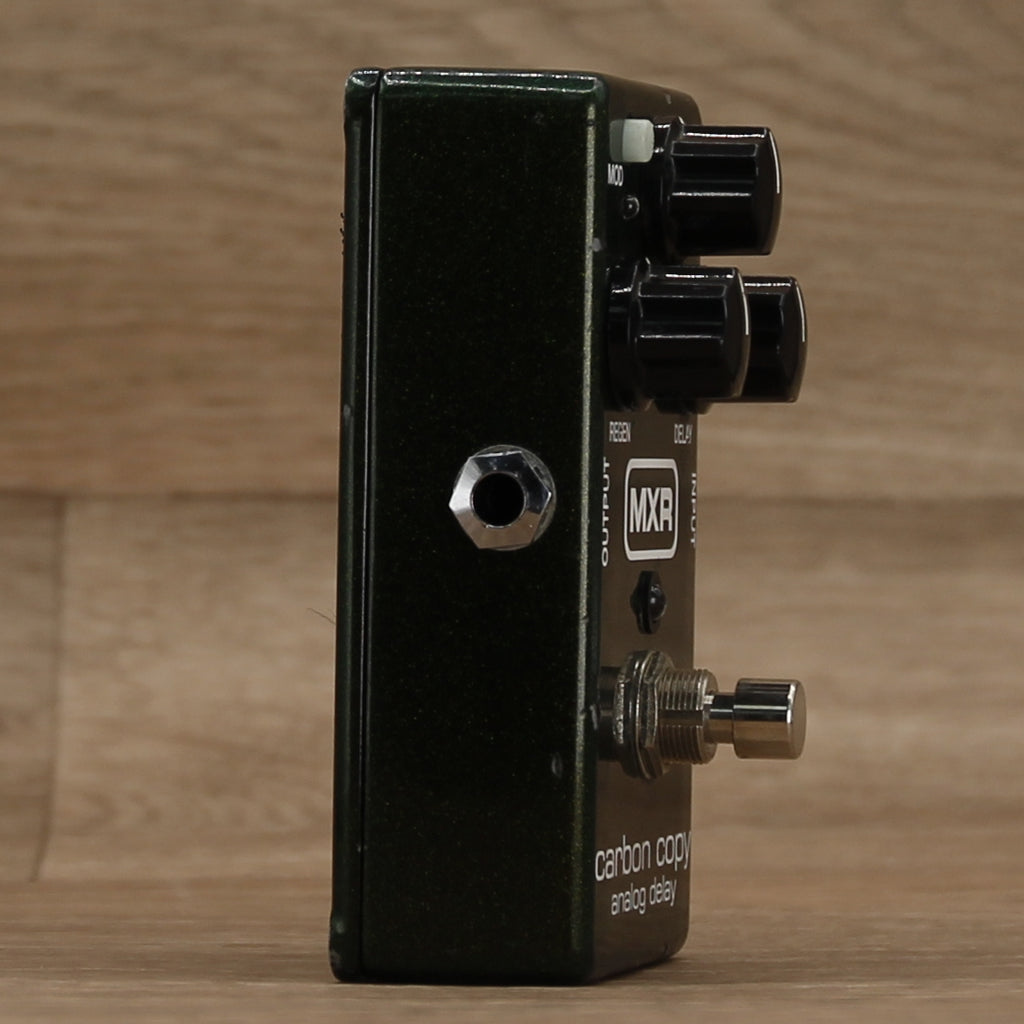

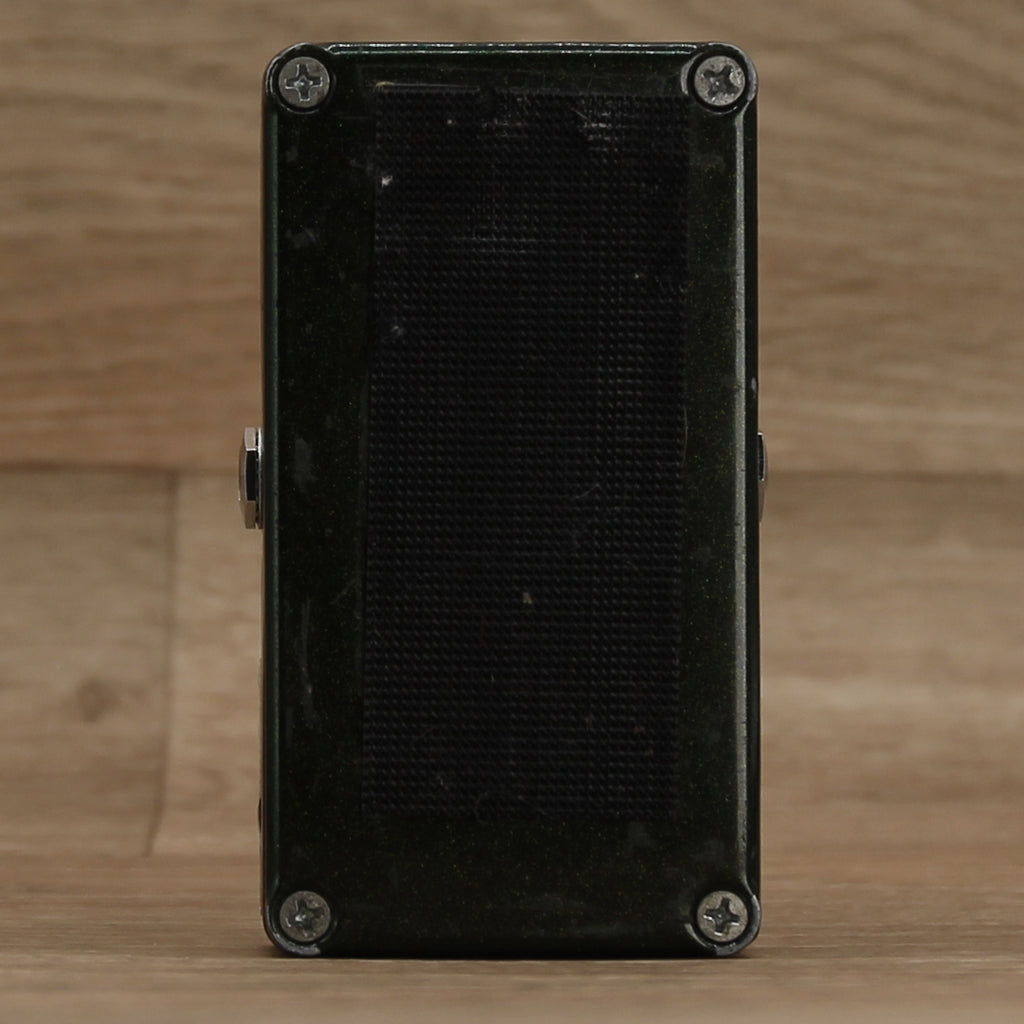

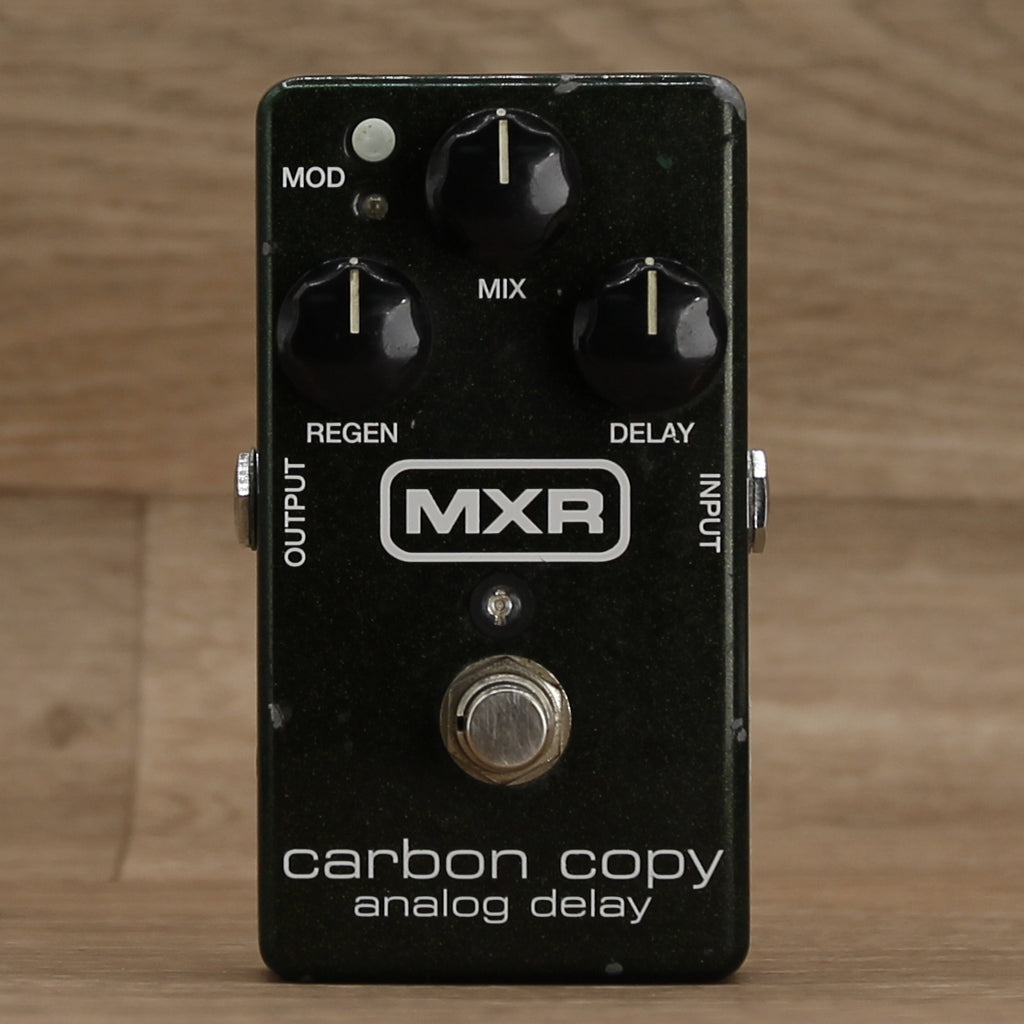

MXR Carbon Copy Analog Delay - USED

USED - Go from crisp "bathroom" slap echoes to epic, Gilmouresque delays with the MXR Carbon Copy Analog Delay. Featuring 600ms of delay time with optional modulation, and a three-knob layout that controls Delay, Mix, and Regen. In addition, there are two internal trim pots that offer user-adjustable width and rate control of the modulation for even more tonal options. All done by a completely analog audio path for authentic rich, warm analog delay—made possible only by old-school analog bucket brigade technology. True bypass.

Specs:

• Input Impedance: 1 MΩ

• Output Impedance: 1 kΩ

• Max Input Level: +5 dBV at 500 Hz

• Max Output Level: +8 dBV

• Noise Floor*

  • Mix at Max CW: -96 dBV

  • Mix at Max CCW: -104 dBV

• Delay Distortion:
  • <1% at 1 kHz
  • -5 dBV Input

• Delay Time: 20 ms to 600 ms

• Noise Reduction: 2:1 ratio

• Modulation Speed: 0.2 Hz to 2.2 Hz

• Bypass: True Hardwire

• Current Draw: 26 mA

• Power Supply: 9 volts DC
